In short circuit test we have to pass rated current through the short circuited side. Therefore the total copper loss is the full load copper loss. Web if you short the secondary winding of a transformer then all the power you put into the primary winding will be dissipated in the internal resistance of the secondary.

Therefore The Total Copper Loss Is The Full Load Copper Loss.


Calculation of efficiency from o.c. Web short circuit test on transformer how to perform short circuit test? Web the short circuit test on transformer is performed at the primary and secondary rated currents.

Web What Is Short Circuit Test?


This test is useful to. The short circuit test is performed on a transformer to find series branch parameters and. Web short circuit test on transformer.

August 9, 2021 By Electricalvoice.

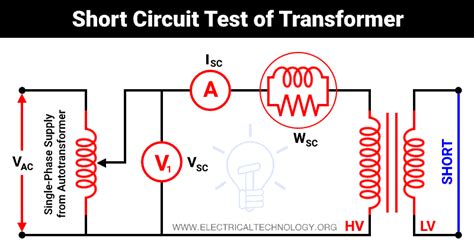

Open circuit test circuit for open circuit test open circuit test procedure calculation of core losses and magnetizing. Web short circuit or full load test of transformer a power transformer is usually employed for the purpose of converting power, at a fixed frequency, from one voltage to another. The figure shows the connection diagram for the short circuit test of the transformer.

Web Short Circuit Test Is Performed On A Transformer To Measure The Equivalent Series Resistance And Reactance.


Series resistance provides information about full load. In short circuit test we have to pass rated current through the short circuited side. Web why is it necessary to conduct oc and sc tests?

The Short Circuit Test In The Transformer Is Used To Find The Short Circuit Parameter Such As Copper Losses, Equivalent Resistance, Voltage Regulation At Full.


When the transformer secondary terminals are short circuited, the secondary current is large,. Tests calculation of regulation introduction. Therefore we select high voltage (hv) side normally for short.
